High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe
Powder Porous Metal Filter Introductions
Sintered metal powder filter elements, also called sintered metal porous filters, adopt stainless steel 304, 304L, 316, 316L powder as raw materials and then produced through sizing, molding and sintering processes. Because of stainless steel material, so the sintered metal powder filter elements are also known as sintered stainless steel powder filter element.
Powder Porous Metal Filter can be made into tube type and plate type. Because of the good permeability, filter fitness and high stock utilization, they are widely used in medical industry, chemical industry, metallurgical industry and field of gas purification.
Powder Porous Metal Filter Features
| Applications for sintered stainless steel powder filter element: | · Dust, bacteria and oil fog removal of gas and steam. · Noise reduction, gas buffer. · The recycle of catalysts. · Decarburization filtration. · Viscous liquid filtration. · Strong polar solvent filtration. · Retention of particles from off-gas of fluidized beds. · The filtration and separation of pharmaceutical, beverage, food, metallurgy, petroleum and other fields. |
| Features: | · High filtration efficiency. · High mechanical strength. · High permeability and porosity. · Anti-corrosion and anti-pressure. · Even distribution of pores catalysis recycling accurate filtering. · Can be used at high and low temperature. · Easy to clean and can be used for many times. · Long service life. |
| Specifications: | · Item: sintered stainless steel powder filter element. · Material: stainless steel powder. · Thickness of wall: 1.0 mm, 2.0 mm, 3.0 mm, 4.0 mm, 5.0 mm, etc. · Length: 10", 20", 30", 40". · Working Temperature: -200 °C to 1000 °C. |
Powder Porous Metal Filter Uses
| Material | Pure titanium/316L powder |
| Filter Rating | 0.5um-50um |
| Porosity | 30-45% |
| Penetrability | 3-800M³/M²hKPa |
| Working pressure | 2.0MPa |
| Operating temperature | 300℃ |
| Shape | Disc,sheet,tube,round bar,cap |
| Specific surface area | 10-40cm²/cm³ |
Powder Porous Metal Filter Types
| | Filter rating 5-70um sintered powder porosity tube metal filter |
| | | | | |
Sintered porous round discs | | | | |
| | | | | |
| | | | | |
Sintered porous cartridge | | | | |
|
|

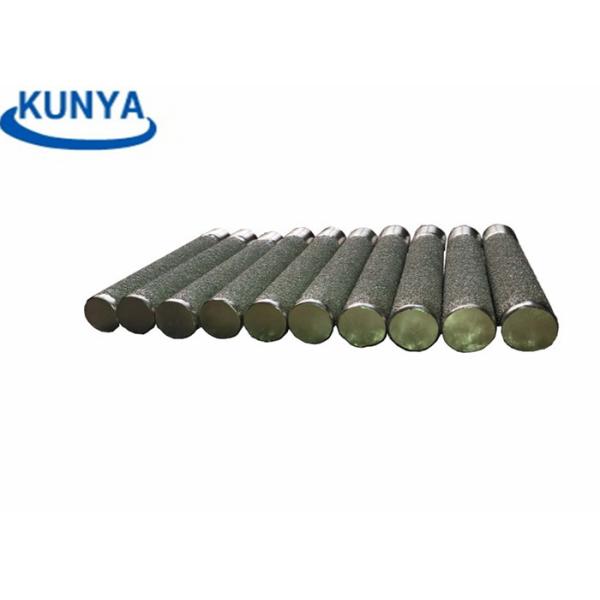

High Temperature 4.0mm Chemical Pharmaceutical Porous Metal Filter Pipe Images
|
